Crane crane flat cable

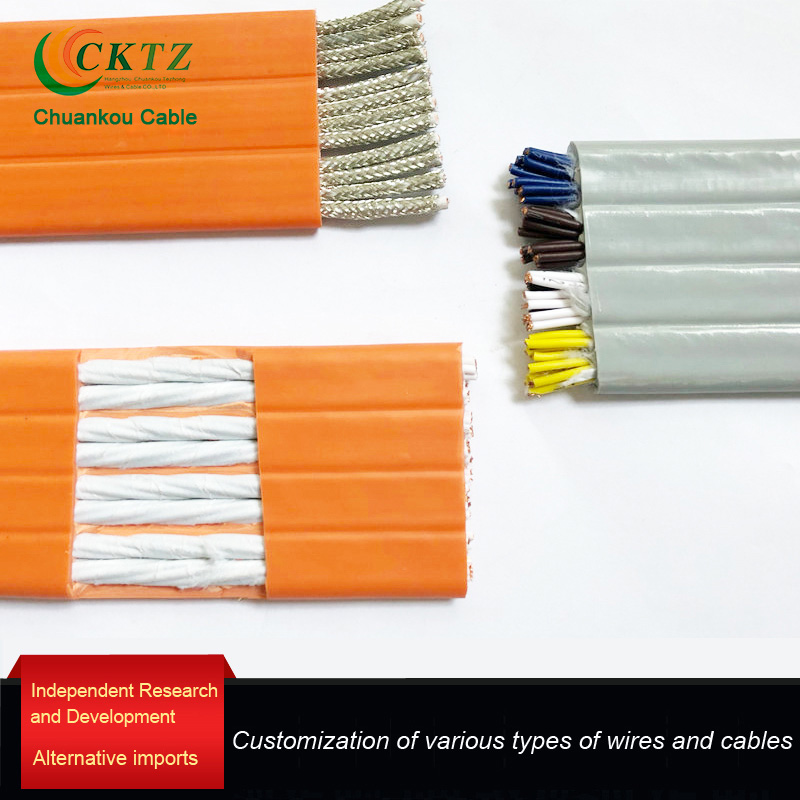

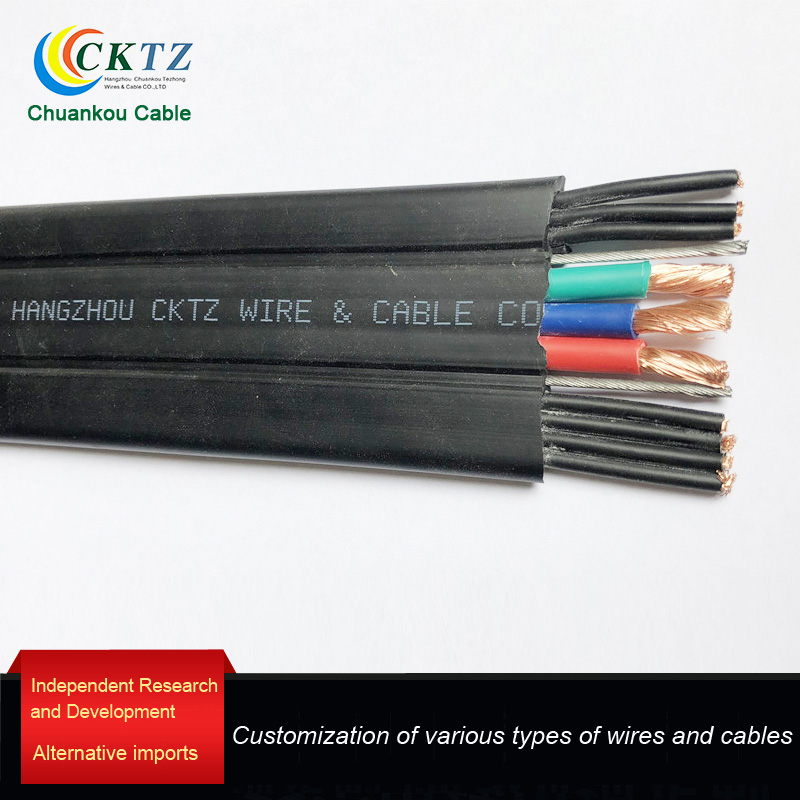

Product Name: Crane Crane Flat Cable
Application scope; Suitable for the fixed and mobile installation of lifting equipment for cranes, gantry cranes, port machinery, power plant bucket wheel machines, construction sites, shipyards, sewage treatment plants, steel mills, and elevated warehouses.

● Basic description
Conductor: Multi strand precision twisted oxygen free bare copper wire meets VDE0295 CLASS 5 or 6 standards
Insulation: Special mixed elastomer nitrile soft insulation
Structure: arranged in a straight or plum blossom pattern
Reinforcement: Galvanized soft steel wire rope (when freely suspended for more than 80 meters) or fiber aramid yarn (optional)
Sheath: Special mixed elastomer nitrile sheath, black (RAL9005) or gray (RAL7001)

● Technical parameters
Rated voltage: U0/U 450/750V~0.6/1KV
Test voltage: 3000V
Bending radius: fixed laying 8XD (minimum edge of cable); Mobile installation of 10XD (minimum cable edge)
Operating temperature: Fixed installation -35 ℃~+80 ℃; Mobile installation -20 ℃~+80 ℃ (please call for consultation if there are special temperatures)
Flame retardancy: Complies with IEC60332-1
Oil and chemical resistance: refer to the attached table of parameters for Shanghai Ain flat cable

● Ordering instructions
Core wire grounding identification: G=yellow/green dual color grounding protection core wire, X=no yellow/green dual color grounding protection core wire
Standard length: (1002003005001000)
Packaging form: Roll up when ≤ 30kg, coil up when>30kg
Please specify the packaging specifications when placing an order (such as 1 × 500m disc or 5 × 100m roll)

● Product application
Specially suitable for installation in indoor environments, it can be used for connecting and installing conveying equipment, lifting machinery and transportation devices, or mobile mechanical components
Applied to rail cars, trolleys, transmission machinery, cranes, and various flaw detection equipment, it can also be used for the installation of self-supporting shafts or inclined shelves, power transmission lines, as well as control, lighting, and communication lines
Flat cables have the characteristic of resisting climate change, which can ensure the normal operation of equipment under harsh environmental conditions

● Product advantages
Compared to circular cables, flat cables have the advantages of saving space and cost, and with the same number of core wires, their bending radius is smaller than circular cables
Maintain flexibility at low temperatures; Low viscosity appearance, non stick installation
Stable tensile and tear resistance performance; Good oil resistance, wear resistance, cold resistance, and weather resistance

We can design and customize the production of acid, alkali, salt spray corrosion resistant series flat cables.
