Towing cable

Product Features
·Long service life and stable quality, imported rubber material is more wear-resistant and resistant to harsh environments, suitable for outdoor use.
Product advantages
·The cable structure is specialized, with symmetrical twisting layers and mesh tensile treatment, greatly improving product quality and service life.
·Ten million round trip experiments and rigorous German testing standards further ensure the bending resistance, weather resistance, and tensile strength of all factory cables.
Port machinery towing cables towing power/control cables

Technical Parameter

Voltage: 0.6/1kv
Test voltage: 3500V/5min (AC)
minimum bend radius
Fixed laying: 5x cable outer diameter
Mobile installation: 10x cable outer diameter

t

emperature range

Fixed application temperature -40 ℃~90 ℃
Moving temperature -35 ℃~90 ℃
Oil resistance: very good
Chemical resistance: excellent performance against acid, alkali, solvents, and various hydraulic oils
Weather resistance: UV resistant, excellent sun aging performance, suitable for outdoor use
Flame retardant properties: compliant with IEC60332-1

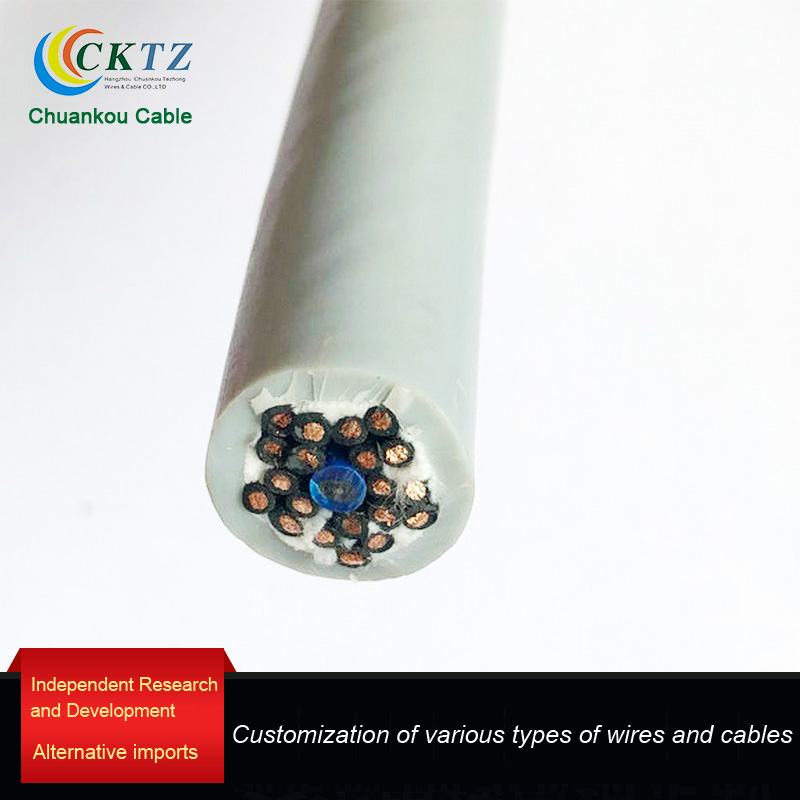

Structure

1. Conductors comply with VDE02956 class
2. Insulation special EPR rubber mixture, insulated wire core black, white numerical identification number
3. Nylon reinforced core
4. Special CR rubber mixture for inner sheath
5. Weaving reinforcement layer

6. Special CR rubber mixture for outer sheath
