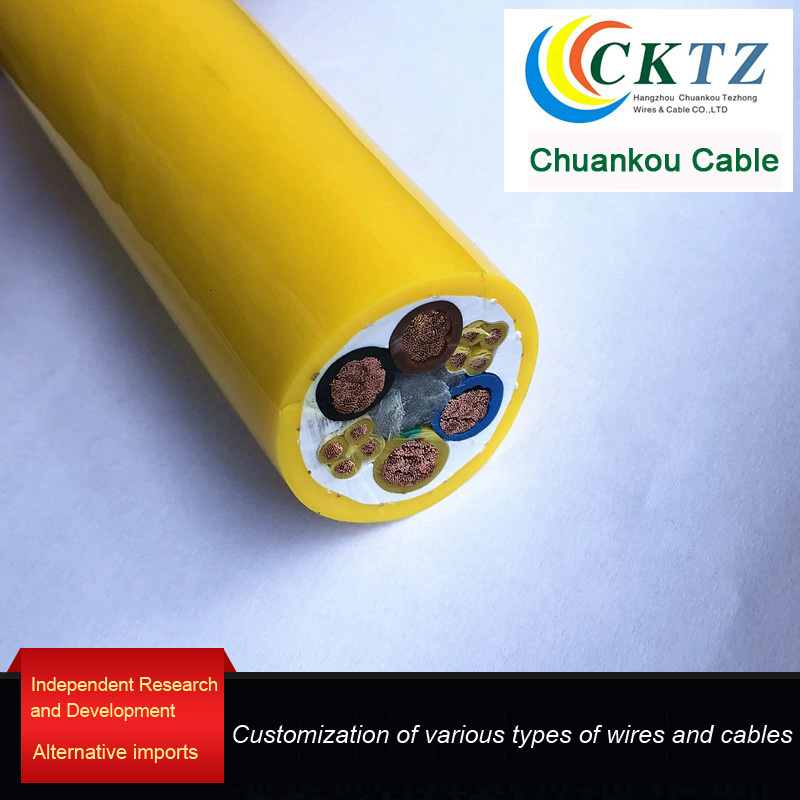

Reel Cable

Cable performance
Focused on excellent design for wear resistance and cracking resistance, suitable for various types of drums in different environments and climates, it can work safely all day long. Its oil and chemical resistance meet the requirements of IEC811-2-1 standard. During frequent curling and retraction, it can resist large axial tension of the cable and keep the cable continuous. In terms of lateral pressure resistance, the highly reliable insulation and sheath materials can resist some uncontrollable damage and protect the outer sheath and cable core from serious damage (except for sharp objects and destructive damage) and can continue to be used. Working in the wild for a long time can safely resist the erosion of ultraviolet rays and thermal aging at high temperatures around the clock, making cables more reliable and safe to operate while reducing maintenance and usage costs.

Built in metal or non-metal tensile and bending resistant conductors can be designed according to usage requirements, replacing traditional ordinary cables. With professional design concepts, special materials, and special production processes, it meets various customer usage environments and has a service life 2-3 times that of similar rubber sheathed cables.

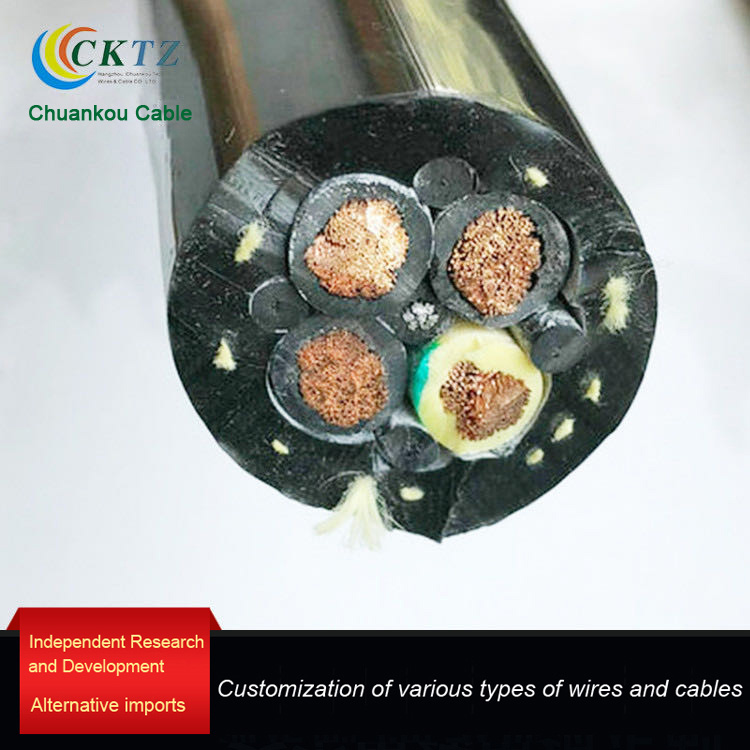

Structure
Cable structure standard: DIN VDE 0250ART 814 standard
Conductor: Complies with Class 6 standards in DIN VDE 0295 or IEC 60228
Insulation: Special customized composite insulation material with excellent tensile strength and insulation resistance indicators, and excellent wear resistance indicators
Insulation identification: in accordance with DIN VDE 0293 standard
Outer sheath: Special customized high-strength wear-resistant composite sheath material, with good tensile strength and tear strength indicators, black, in compliance with RAL9005 requirements

Characteristic indicators
Working voltage: S ≤ 0.75mm2300/500V
1.0mm2≤S≤6.0mm2,450/750V
10mm2≤S≤150mm2,600/1000V
Test voltage: S ≥ 1.0mm, 23000V, 50Hz, 5Min
Minimum insulation resistance at 70 ℃: 20 M Ω Km
Bending radius: 7.5 times the outer diameter of the cable
Temperature range:
Mobile installation: -15 ℃~+80 ℃ (can be customized according to the usage environment, with a minimum temperature resistance of -40 ℃)
Fixed installation: -40 ℃ to+80 ℃
Product models include: 1-60 core, 0.2-180 square all types of drum cables
