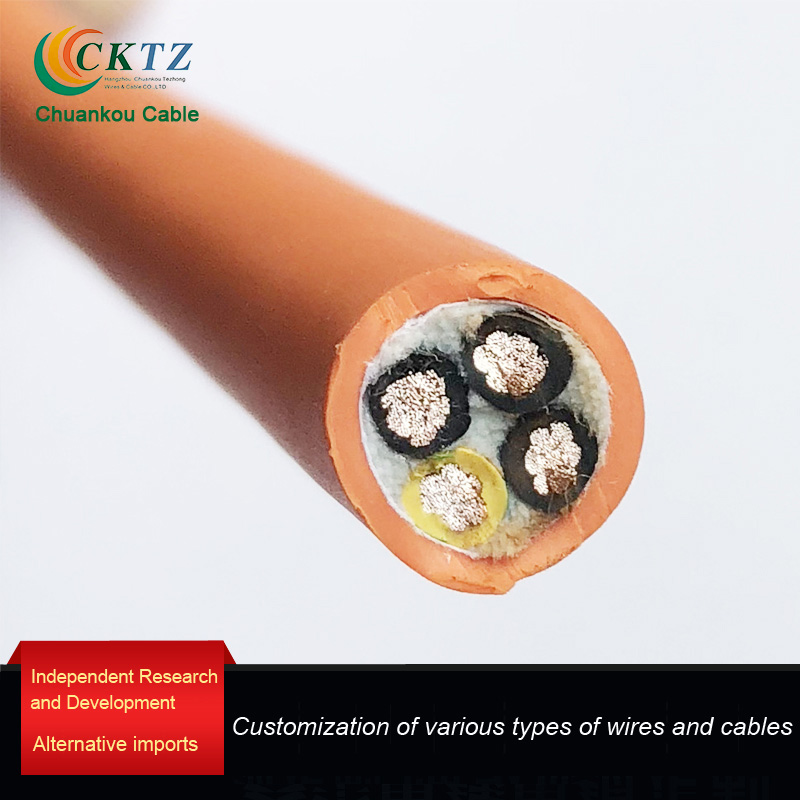

Product Name: PUR drag chain servo motor cable
Product No: CKTZ-CkM6
Cable Category: Towline cable
Application Area: Robot cable
Product DescriptionOnline Ordering
This type of cable is designed for applications that require high bending and continuous motion, and is widely used in drag chain systems, robots, and mobile drive systems. The outer sheath material has the characteristics of wear resistance, hydrolysis resistance, antibacterial, flame retardant, etc., which maximizes the advantages of the cable in the drag chain system.
Product Features
Long service life and stable quality, imported PUR material is more wear-resistant and resistant to harsh environments, suitable for outdoor use.
Product advantages
·The special structural design and materials enhance its wear and bending resistance. The special tensile reinforcement layer inside greatly improves the product's service life and tensile resistance.
·Adopting twisted pair technology to avoid internal noise and signal interference.
·The inner sheath makes the core structure more compact, greatly avoiding the occurrence of core leakage during use and increasing the service life.
·The shielding layer uses tin plated copper wire to reduce oxidation phenomenon; And the coverage rate is very tight, reaching 90%, reducing interference during use.
Servo motor cable for drag chain (PUR sheath) (Eketten flex MPS)
Technical Parameter
Voltage: 0.6/1kv
Test voltage: 3500V/5min (AC)
minimum bend radius
Fixed laying: 4x cable outer diameter
Mobile installation: 7.5x cable outer diameter
Temperature range
Fixed application temperature: -30 ℃~90 ℃
Mobile temperature: -20 ℃~90 ℃
Oil resistance: very good
Chemical resistance: excellent performance against acid, alkali, solvents, and various hydraulic oils
Weather resistance: UV resistant, excellent sun aging performance, suitable for outdoor use
Maximum movement speed
Overhead speed: 8m/s
Sliding speed: 5m/s
Acceleration: 75m/s2

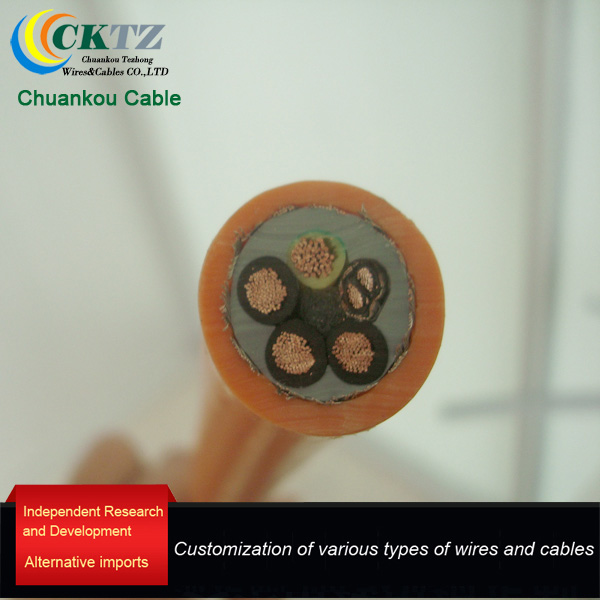

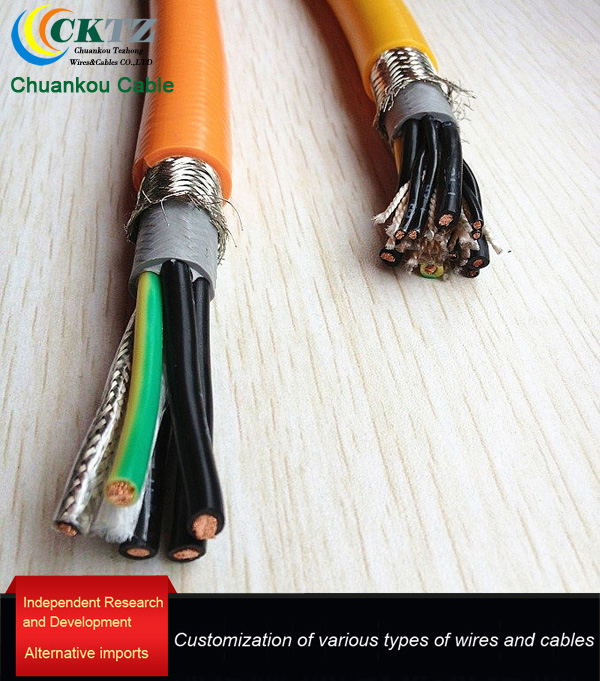

Structure
1. Twisted shielded data cable
2. Conductor VDE02956 Class
3. Special low viscosity TPEE mixture for insulation layer
4. Special tensile strengthening core
5. Inner sheath elastomer mixture
6. Yellow green grounding wire
7. Tin plated copper wire braided shielding layer with optical coverage of 90%
8. Special low viscosity wear-resistant PUR mixture for outer sheath
List of specifications and models
|
Nominal cross-section mm2 |
Structural composition mm |
Approximate outer diameter mm |
Approximate weight Kg/km |
| 4G1.5＋2×0.5 | 4×48/0.20＋2×28/0.15 | 13 | 240 |
| 4G1.5＋2×0.75 | 4×48/0.20＋2×24/0.20 | 13.5 | 270 |
| 4G1.5＋2×1 | 4×48/0.20＋2×32/0.20 | 14.5 | 285 |
| 4G2.5＋2×0.5 | 4×77/0.20＋2×28/0.15 | 13 | 310 |
| 4G2.5＋2×0.75 | 4×77/0.20＋2×24/0.20 | 14.5 | 320 |
| 4G2.5＋2×1 | 4×77/0.20＋2×32/0.20 | 15 | 330 |
| 4G4＋2×1 | 4×126/0.20＋2×32/0.20 | 15.5 | 375 |
| 4G4＋2×1.5 | 4×126/0.20＋2×48/0.20 | 16.5 | 390 |
| 4G6＋2×1 | 4×189/0.20＋2×32/0.20 | 18 | 520 |
| 4G6＋3×1 | 4×189/0.20＋3×32/0.20 | 18 | 535 |
| 4G6＋2×1.5 | 4×189/0.20＋2×48/0.20 | 19 | 590 |
| 4G10＋2×1 | 4×322/0.20＋2×32/0.20 | 22 | 760 |
| 4G10＋3×1 | 4×322/0.20＋3×32/0.20 | 22 | 780 |
| 4G10＋2×1.5 | 4×322/0.20＋2×48/0.20 | 22 | 810 |
| 4G16＋2×1 | 4×513/0.20＋2×32/0.20 | 26 | 1100 |
| 4G16＋2×1.5 | 4×513/0.20＋2×48/0.20 | 26 | 1130 |
| 4G16＋3×1.5 | 4×513/0.20＋3×48/0.20 | 26 | 1200 |
| 4G25＋2×1.5 | 4×798/0.20＋2×48/0.20 | 30.5 | 1510 |
| 4G35＋2×1.5 | 4×1121/0.20＋2×48/0.20 | 33.5 | 2050 |
| 4G1.5＋2×（2×0.5） | 4×48/0.20＋2×2×16/0.20 | 15 | 310 |
| 4G1.5＋2×（2×0.75） | 4×48/0.20＋2×2×24/0.20 | 15 | 325 |
| 4G2.5＋2×（2×0.75） | 4×77/0.20＋2×2×24/0.20 | 17 | 340 |
| 4G2.5＋2×（2×1） | 4×77/0.20＋2×2×32/0.20 | 17.5 | 355 |
| 4G2.5＋2×（2×1.5） | 4×77/0.20＋2×2×48/0.20 | 17 | 380 |
| 4G4＋2×（2×1.5） | 4×126/0.20＋2×2×48/0.20 | 19.5 | 420 |
| 4G6＋2×（2×1.5） | 4×189/0.20＋2×2×48/0.20 | 20.5 | 710 |
| 4G10＋2×（2×1.5） | 4×322/0.20＋2×2×48/0.20 | 24 | 1075 |
| 4G16＋2×（2×1.5） | 4×513/0.20＋2×2×48/0.20 | 28 | 1280 |
| 4G25＋2×（2×1.5） | 4×798/0.20＋2×2×48/0.20 | 33 | 2000 |
| 4G35＋2×（2×1.5） | 4×1121/0.20＋2×2×48/0.20 | 38 | 2180 |
|
The above are commonly used specifications and models for the cable section. Other special specifications/colors and more complex applications can be developed and customized according to requirements |
|||
