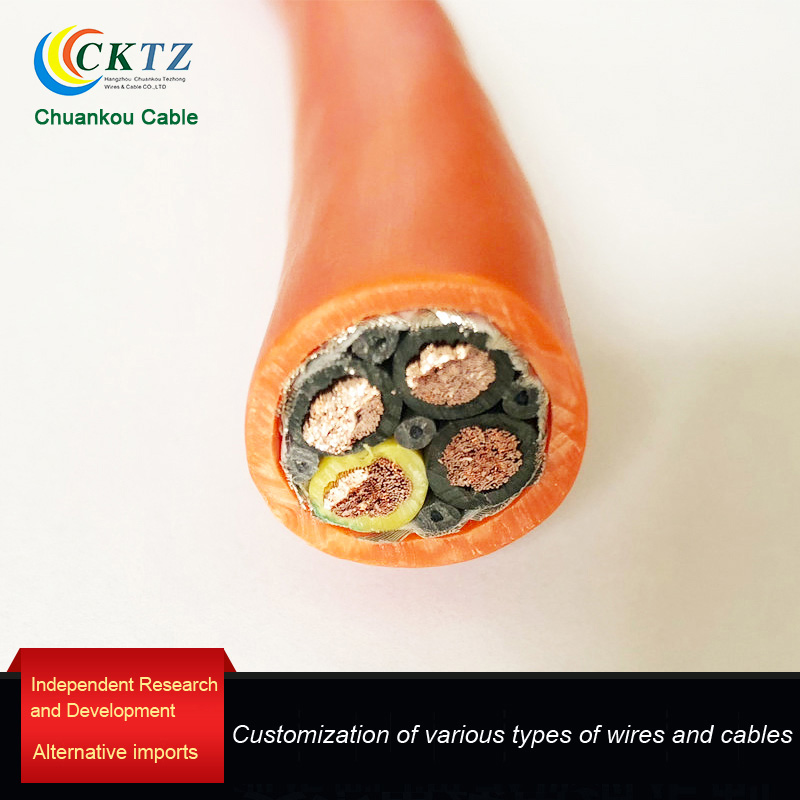

PVC drag chain control shielded cable

Application scenarios
This type of cable is designed for applications that require high bending and continuous motion, and is widely used in drag chain systems, robots, and mobile drive systems. The outer sheath material has the characteristics of wear resistance, hydrolysis resistance, antibacterial, flame retardant, etc., which maximizes the advantages of the cable in the drag chain system.
Product Features
Long service life and high cost-effectiveness, PVC material makes it wear-resistant and stable, suitable for indoor use.

Product advantages
·The special structural design and materials enhance its wear and bending resistance. The special tensile reinforcement layer inside greatly improves the product's service life and tensile resistance.
·The inner sheath makes the core structure more compact, greatly avoiding the occurrence of core leakage during use and increasing the service life.
·The shielding layer uses tin plated copper wire to reduce oxidation phenomenon; And the coverage rate is very tight, reaching 90%, reducing interference during use.

Drag chain control shielded cable (PVC sheath)
Technical Parameter
Voltage: 300/500V
Test voltage: 2000V/5min (AC)

minimum bend radius
Fixed laying: 5x cable outer diameter
Mobile installation: 7.5x cable outer diameter

temperature range
Fixed application temperature -20 ℃~80 ℃
Moving temperature -15 ℃~80 ℃

Oil resistance: ordinary
Weather resistance: UV resistant, suitable for indoor use
Flame retardant properties: compliant with IEC60332-1

Maximum movement speed
Overhead speed: 3m/s
Sliding speed: 2m/s
Acceleration: 20m/s2

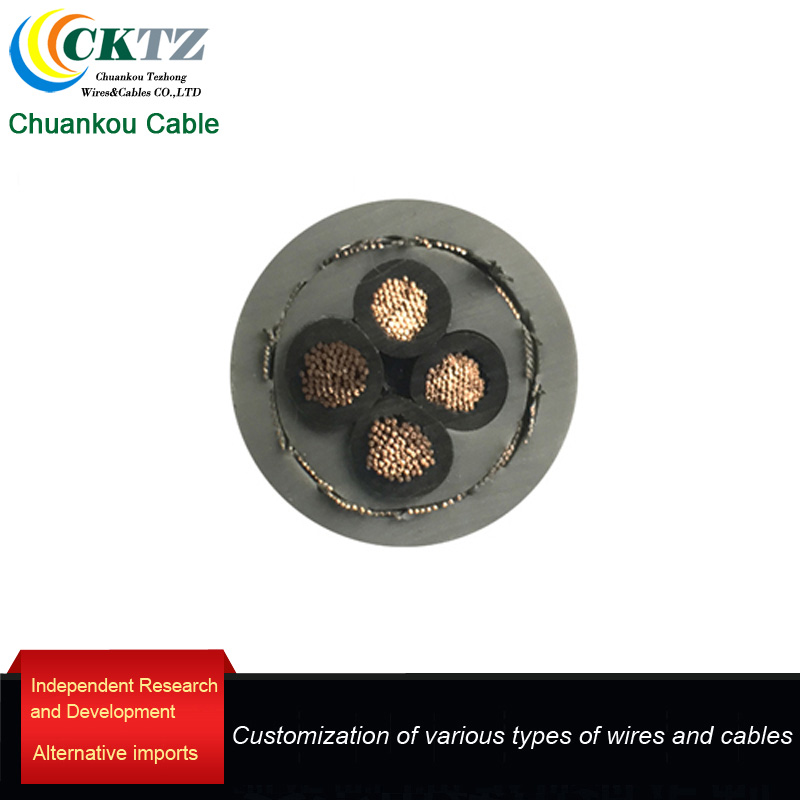

Structure
1. Conductor VDE02956 Class
2. Special low viscosity PVC mixture for insulation layer
3. Special tensile strengthening core
4. Special low viscosity PVC mixture for inner sheath
5. Tin plated copper wire braided shielding layer with optical coverage of 90%
6. Special low viscosity wear-resistant PVC mixture for outer sheath
