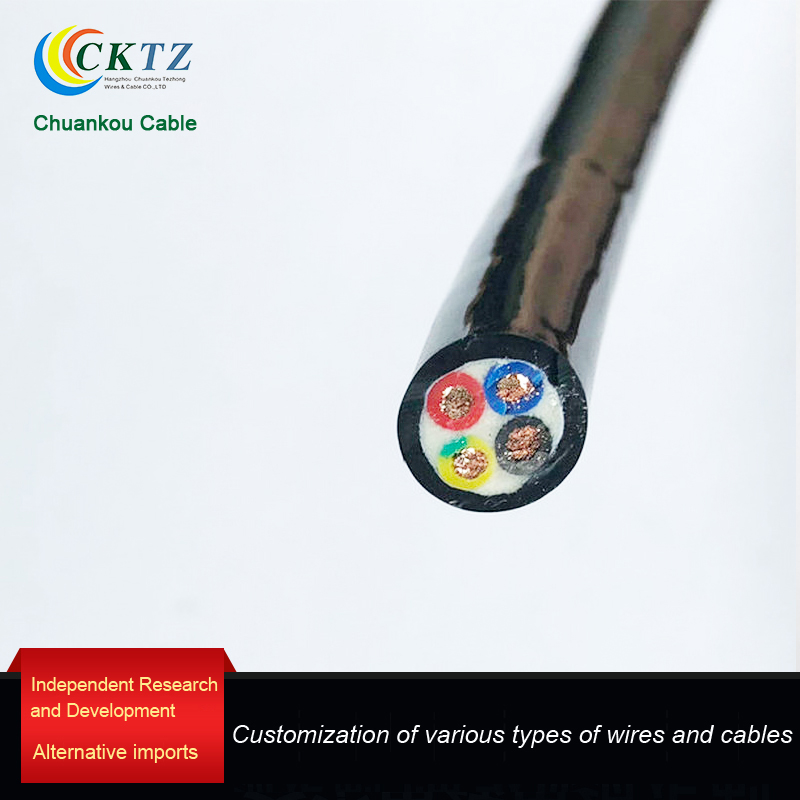

PUR drag chain power cable
Category: Drag Chain Cable
Model: CKTZ-CKM6
The drag chain control cable (PUR sheath) is designed for applications that require high bending and continuous motion, and is widely used in drag chain systems, robots, and mobile drive systems. The outer sheath material has the characteristics of wear resistance, hydrolysis resistance, antibacterial, flame retardant, etc., which maximizes the advantages of the cable in the drag chain system.
Application scenarios
This type of cable is designed for applications that require high bending and continuous motion, and is widely used in drag chain systems, robots, and mobile drive systems. The outer sheath material has the characteristics of wear resistance, hydrolysis resistance, antibacterial, flame retardant, etc., which maximizes the advantages of the cable in the drag chain system.
Product Features
Long service life and stable quality, imported PUR material is more wear-resistant and resistant to harsh environments, suitable for outdoor use.
Product advantages
The special structural design and materials enhance its wear and bending resistance. The special tensile reinforcement layer inside greatly improves the product's service life and tensile resistance.
Power cable for drag chain (PUR sheath)
Technical Parameter
Voltage: 0.6/1kv
Test voltage: 3500V/5min (AC)
minimum bend radius
Fixed laying: 4x cable outer diameter
Mobile installation: 7.5x cable outer diameter
temperature range
Fixed application temperature: -30 ℃~90 ℃
Mobile temperature: -20 ℃~90 ℃
Oil resistance: very good
Chemical resistance: excellent performance against acid, alkali, solvents, and various hydraulic oils
Weather resistance: UV resistant, excellent sun aging performance, suitable for outdoor use
Maximum movement speed
Overhead speed: 8m/s
Sliding speed: 5m/s
Acceleration: 75m/s2
Structure
1. Conductor VDE02956 Class
2. Special high-strength TPE mixture for insulation layer
3. Special tensile strengthening core
4. Special low viscosity wear-resistant PUR mixture for sheath
List of specifications and models:
|
Specifications
|
Nominal outer diamete
rmm
|
Maximum outer diameter
mm
|
Total weight of cable
Kg/km
|
|
Nominal cross-section mm2
|
|
1×4
|
1×126/0.20
|
5.2
|
5.7
|
62
|
|
1×6
|
1×198/0.20
|
6.9
|
7.5
|
96
|
|
1×10
|
1×322/0.20
|
8
|
8.8
|
145
|
|
1×16
|
1×513/0.20
|
9.5
|
10.4
|
216
|
|
1×25
|
1×798/0.20
|
11.4
|
12.5
|
324
|
|
1×35
|
1×1121/0.20
|
13.1
|
14.4
|
439
|
|
1×50
|
1×703/0.30
|
14.8
|
16.3
|
601
|
|
1×70
|
1×999/0.30
|
17.8
|
19.6
|
840
|
|
1×95
|
1×1332/0.30
|
19.5
|
21.5
|
1090
|
|
1×120
|
1×1702/0.30
|
21.6
|
23.7
|
1368
|
|
1×150
|
1×2109/0.30
|
24
|
26.4
|
1690
|
|
1×185
|
1×1443/0.40
|
26.4
|
29
|
2049
|
|
4×1.5
|
4×48/0.20
|
9
|
9.9
|
129
|
|
4×2.5
|
4×77/0.20
|
10.2
|
11.2
|
178
|
|
4×4
|
4×126/0.20
|
11.6
|
12.8
|
253
|
|
4×6
|
4×189/0.20
|
15.5
|
17.1
|
398
|
|
4×10
|
4×322/0.20
|
18.5
|
20.4
|
604
|
|
4×16
|
4×513/0.20
|
22.1
|
24.3
|
9.4
|
|
4×25
|
4×798/0.20
|
26.7
|
29.4
|
1353
|
|
4×35
|
4×1121/0.20
|
31.6
|
34.8
|
1878
|
|
4×50
|
4×703/0.30
|
35.7
|
39.2
|
2546
|
The above are commonly used specifications and models for the cable section.
Other special specifications/colors and more complex applications can be developed and customized according to requirements
|
