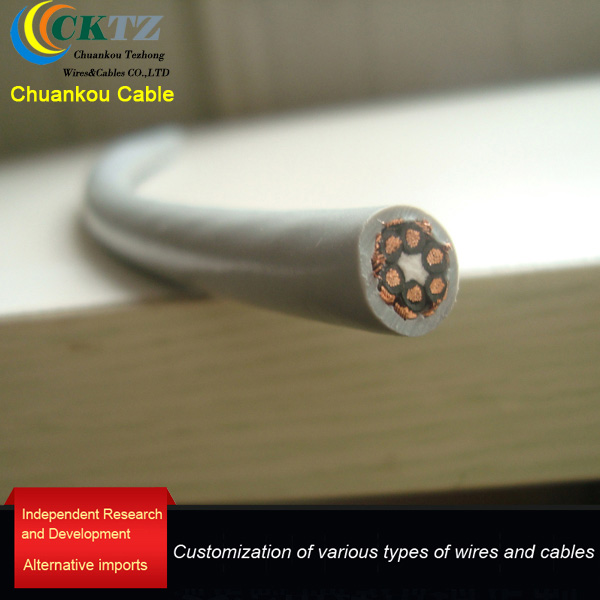

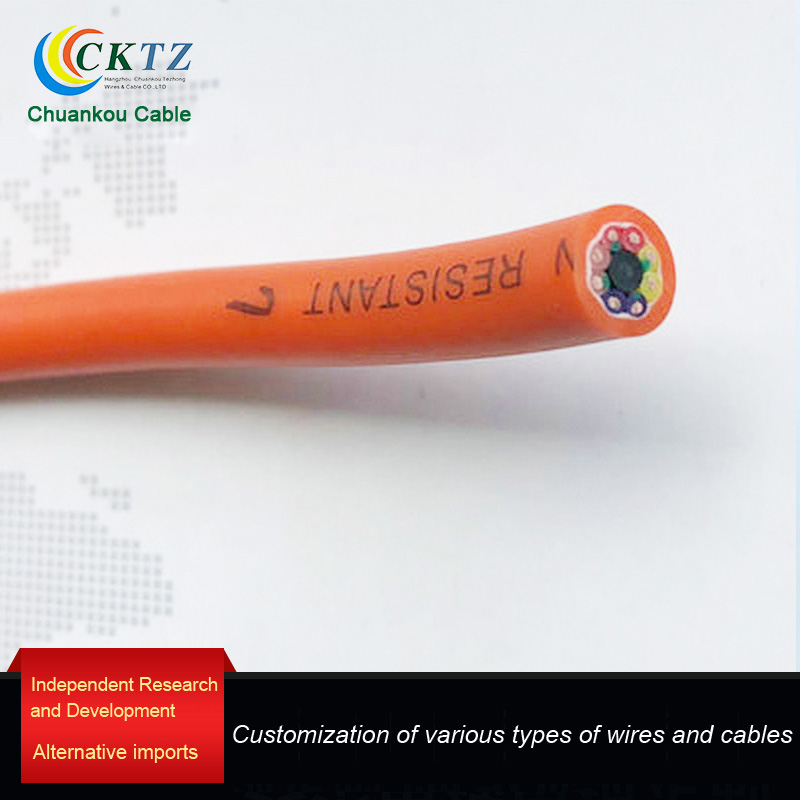

PVC drag chain control cable

Application scenarios
This type of cable is designed for applications that require high bending and continuous motion, and is widely used in drag chain systems, robots, and mobile drive systems. The outer sheath material has the characteristics of wear resistance, hydrolysis resistance, antibacterial, flame retardant, etc., which maximizes the advantages of the cable in the drag chain system.

Product Features
Long service life and high cost-effectiveness, PVC material makes it wear-resistant and stable, suitable for indoor use.
Product advantages
The special structural design and materials enhance its wear and bending resistance. The special tensile reinforcement layer inside greatly improves the product's service life and tensile resistance.

Drag chain control cable (PVC sheath)
Technical Parameter
Voltage: 300/500V
Test voltage: 2000V/5min (AC)


minimum bend radius
Fixed laying: 5x cable outer diameter
Mobile installation: 7.5x cable outer diameter

temperature range
Fixed application temperature -20 ℃~80 ℃
Moving temperature -15 ℃~80 ℃

Oil resistance: ordinary
Weather resistance: UV resistant, suitable for indoor use
Flame retardant properties: compliant with IEC60332-1

Maximum movement speed
Overhead speed: 3m/s
Sliding speed: 2m/s
Acceleration: 20m/s2

Structure
1. Conductor VDE02956 Class
2. Special low viscosity PVC mixture for insulation layer
3. Special tensile strengthening core
4. Special low viscosity PVC mixture for sheath

List of specifications and models

Specifications		Nominal outer diamete rmm	Maximum outer diameter mm	Total weight of cable Kg/km
Number of cores x cross-section mm2
2×0.25	2×48/0.08	3.9	4.6	22
3×0.25	3×48/0.08	4	4.6	26
4×0.25	4×48/0.08	4.3	5	31
5×0.25	5×48/0.08	4.6	5.3	36
6×0.25	6×48/0.08	4.9	5.7	42
7×0.25	7×48/0.08	5.2	6	47
8×0.25	8×48/0.08	5.8	6.7	56
10×0.25	10×48/0.08	7.4	8.4	81
12×0.25	12×48/0.08	8.1	9.1	96
14×0.25	14×48/0.08	8.8	9.8	112
2×0.34	2×19/0.15	4.38	4.9	27
3×0.34	3×19/0.15	4.58	5.1	33
4×0.34	4×19/0.15	4.91	5.5	39
5×0.34	5×19/0.15	5.28	5.9	46
6×0.34	6×19/0.15	5.87	6.5	57
7×0.34	7×19/0.15	6.26	6.9	64
8×0.34	8×19/0.15	6.77	7.5	73
10×0.34	10×19/0.15	8.91	9.9	112
12×0.34	12×19/0.15	9.04	10	122
14×0.34	14×19/0.15	10.18	11.2	145
16×0.34	16×19/0.15	10.72	11.8	156
18×0.34	18×19/0.15	10.45	11.5	166
20×0.34	20×19/0.15	11.81	13	190
24×0.34	24×19/0.15	12.94	14.3	226
25×0.34	25×19/0.15	13	14.4	230
30×0.34	30×19/0.15	14.25	15.7	270
36×0.34	36×19/0.15	15.41	17	314
2×0.5	2×28/0.15	5.2	5.9	37
3×0.5	3×28/0.15	5.5	6.2	46
4×0.5	4×28/0.15	6.2	7	59
5×0.5	5×28/0.15	6.6	7.5	70
6×0.5	6×28/0.15	7.2	8.1	82
7×0.5	7×28/0.15	7.7	8.7	92
8×0.5	8×28/0.15	8.6	9.6	110
10×0.5	10×28/0.15	10.8	11.9	158
12×0.5	12×28/0.15	11.2	12.3	179
14×0.5	14×28/0.15	12.7	14	213
16×0.5	16×28/0.15	13.6	15	236
18×0.5	18×28/0.15	13.8	15.2	244
20×0.5	20×28/0.15	15	16.5	287
24×0.5	24×28/0.15	16.3	17.9	332
25×0.5	25×28/0.15	16.3	18	338
30×0.5	30×28/0.15	17.9	19.7	402
36×0.5	36×28/0.15	19.9	21.9	484
2×0.75	2×24/0.20	5.9	6.7	48
3×0.75	3×24/0.20	6.2	7.1	60
4×0.75	4×24/0.20	6.7	7.7	73
5×0.75	5×24/0.20	7.2	8.2	88
6×0.75	6×24/0.20	7.8	8.8	102
7×0.75	7×24/0.20	8.6	9.6	121
8×0.75	8×24/0.20	9.3	10.3	137
10×0.75	10×24/0.20	11.9	13.1	199
12×0.75	12×24/0.20	12.1	13.3	221
14×0.75	14×24/0.20	14.2	15.7	275
16×0.75	16×24/0.20	15	16.6	300
18×0.75	18×24/0.20	15.2	16.8	320
20×0.75	20×24/0.20	16.6	18.2	364
24×0.75	24×24/0.20	18	19.8	425
25×0.75	25×24/0.20	18.1	19.9	433
30×0.75	30×24/0.20	20	22	525
36×0.75	36×24/0.20	22	24.2	621
2×1	2×32/0.20	6.4	7.2	57
3×1	3×32/0.20	6.7	7.5	73
4×1	4×32/0.20	7.3	8.1	90
5×1	5×32/0.20	7.9	8.7	108
6×1	6×32/0.20	8.8	9.7	130
7×1	7×32/0.20	9.5	10.4	150
8×1	8×32/0.20	10.3	11.4	170
10×1	10×32/0.20	13.1	14.5	244
12×1	12×32/0.20	13.4	14.7	272
14×1	14×32/0.20	15.7	17.3	337
16×1	16×32/0.20	16.8	18.5	374
18×1	18×32/0.20	17	18.7	395
20×1	20×32/0.20	18.3	20.2	449
24×1	24×32/0.20	20.3	22.4	544
25×1	25×32/0.20	20.4	22.5	554
30×1	30×32/0.20	22.4	24.7	661
36×1	36×32/0.20	24.4	26.8	764
2×1.5	2×48/0.20	7.2	8	74
3×1.5	3×48/0.20	7.6	8.5	96
4×1.5	4×48/0.20	8.5	9.4	124
5×1.5	5×48/0.20	9.2	10.1	149
6×1.5	6×48/0.20	10	11	175
7×1.5	7×48/0.20	10.8	11.9	200
8×1.5	8×48/0.20	12	13.2	236
10×1.5	10×48/0.20	15.3	16.8	335
12×1.5	12×48/0.20	15.6	17.1	375
14×1.5	14×48/0.20	18.1	19.9	458
16×1.5	16×48/0.20	19.6	21.5	515
18×1.5	18×48/0.20	19.8	21.7	537
20×1.5	20×48/0.20	21.3	23.5	619
24×1.5	24×48/0.20	23.4	25.8	734
25×1.5	25×48/0.20	23.6	25.9	752
30×1.5	30×48/0.20	26.1	28.7	902
36×1.5	36×48/0.20	28.6	31.5	1027
2×2.5	2×77/0.20	9.4	10.3	126
3×2.5	3×77/0.20	9.9	10.9	160
4×2.5	4×77/0.20	10.7	11.8	197
5×2.5	5×77/0.20	10.6	11.6	206
6×2.5	6×77/0.20	11.7	12.9	249
7×2.5	7×77/0.20	12.6	13.9	288
8×2.5	8×77/0.20	15.3	16.8	381
10×2.5	10×77/0.20	17.7	19.5	465
12×2.5	12×77/0.20	18	19.8	526
14×2.5	14×77/0.20	21.2	23.3	647
16×2.5	16×77/0.20	22.7	24.9	717
18×2.5	18×77/0.20	22.9	25.1	760
20×2.5	20×77/0.20	25.2	27.7	890
24×2.5	24×77/0.20	27.7	30.4	1055
25×2.5	25×77/0.20	27.8	30.6	1085
30×2.5	30×77/0.20	30.9	34	1314
36×2.5	36×77/0.20	33.9	37.3	1556
The above are commonly used specifications and models for the cable section.  Other special specifications/colors and more complex applications can be developed and customized according to requirements
